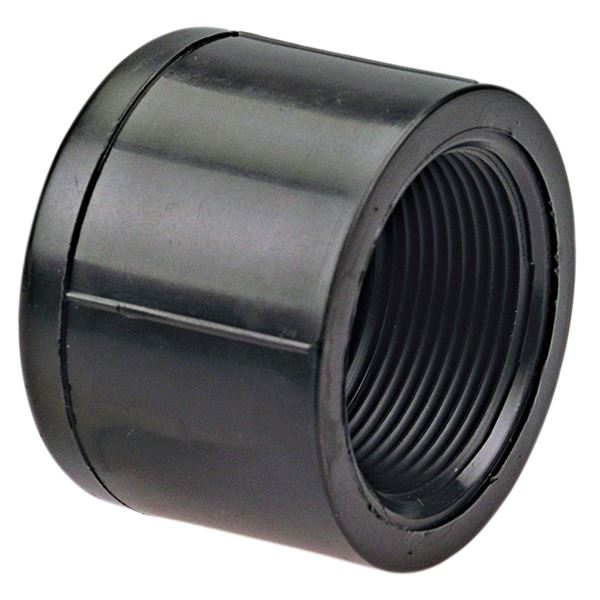

The black PP thread cap features a female NPT thread connection. Chemtrol® PP fittings are lightweight, easy to install and maintenance-free. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Chemtrol® industrial thermoplastic flow-control systems perform well in harsh environments because they are made with materials that are resistant to abrasion, corrosion, weather, chemical and biological attack. Chemtrol® black polypropylene demonstrates excellent tensile strength, UV stability and versatile chemical resistance properties, making it the material of choice for harsh industrial, outdoor and underground applications.
Material Number |
UPC Code |
Size (Dimensions) |
Connection Type |
Description |
|---|---|---|---|---|
| CC04350 | N/A 039923091383 | N/A 1/2 | N/A F (NPT) | N/A 6117-3 1/2 THD CAP PPRO FLAT |
| CC04400 | N/A 039923091406 | N/A 3/4 | N/A F (NPT) | N/A 6117-3 3/4 THD CAP PPRO FLAT |
| CC04450 | N/A 039923091420 | N/A 1 | N/A F (NPT) | N/A 6117-3 1 THD CAP PPRO FLAT |
| CC04500 | N/A 039923091444 | N/A 1 1/4 | N/A F (NPT) | N/A 6117-3 1-1/4 THD CAP PPRO FLAT |
| CC04550 | N/A 039923091468 | N/A 1 1/2 | N/A F (NPT) | N/A 6117-3 1-1/2 THD CAP PPRO FLAT |
| CC04600 | N/A 039923091482 | N/A 2 | N/A F (NPT) | N/A 6117-3 2 THD CAP PPRO FLAT |
| CC04650 | N/A 039923091505 | N/A 3 | N/A F (NPT) | N/A 6117-3 3 THD CAP PPRO DOME |
| CC04700 | N/A 039923091529 | N/A 4 | N/A F (NPT) | N/A 6117-3 4 THD CAP PPRO DOME |
