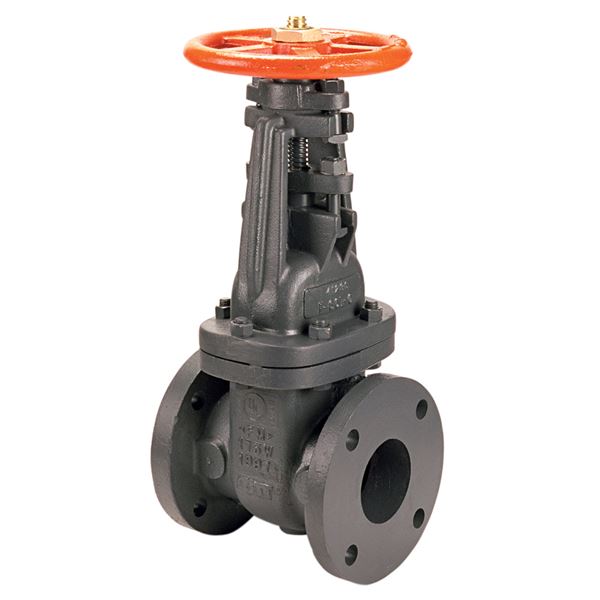

    • Gate Valve - Cast Iron, Fire Protection, Pre-Grooved Stem, F-607-OTS
    The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. This valve features a pre-grooved stem for tamper switch mounting. It is listed by Underwriters Laboratories of the US and Canada (UL/ULC) and FM Approved. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical, fire protection and industrial applications. NIBCO® pressure rated valves are backed by the NIBCO 5-year 125% limited warranty.
    1 - 8 of 8 | Results Per Page | View | Unit of Measure
    1
    Request Information Compare Items Search by Specification Add to CAD Cart

    Material Number

    UPC Code

    Valve Size

    Connection Type

    Description

    Turns/Operation

    N/A 039923695185 N/A 2 1/2 N/A F -- Flanged N/A F607OTS 2-1/2 FLG UL/FM GATE N/A Multi-Turn
    N/A 039923695192 N/A 3 N/A F -- Flanged N/A F607OTS 3 FLG UL/FM GATE N/A Multi-Turn
    N/A 039923695208 N/A 4 N/A F -- Flanged N/A F607OTS 4 FLG UL/FM GATE N/A Multi-Turn
    N/A 039923695215 N/A 5 N/A F -- Flanged N/A F607OTS 5 FLG UL/FM GATE N/A Multi-Turn
    N/A 039923695222 N/A 6 N/A F -- Flanged N/A F607OTS 6 FLG UL/FM GATE VALVE N/A Multi-Turn
    N/A 039923695239 N/A 8 N/A F -- Flanged N/A F607OTS 8 FLG UL/FM GATE VALVE N/A Multi-Turn
    N/A 039923695246 N/A 10 N/A F -- Flanged N/A F607OTS 10 UL/FM FLG GATE N/A Multi-Turn
    N/A 039923695253 N/A 12 N/A F -- Flanged N/A F607OTS 12 FLG UL/FM GATE N/A Multi-Turn
