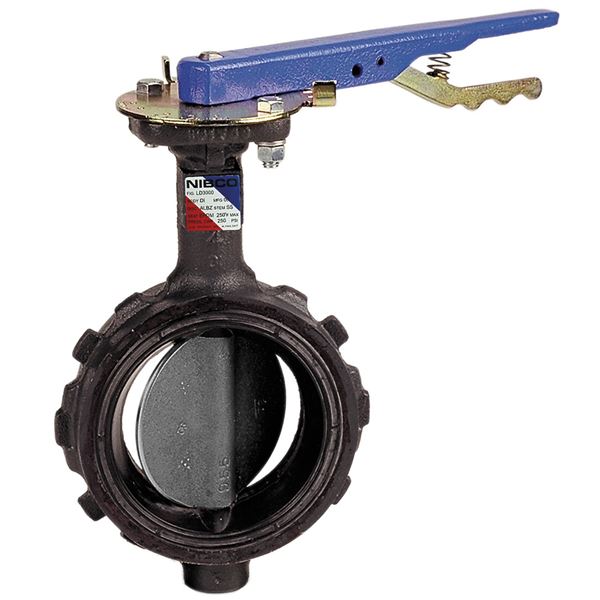

    • Butterfly Valve - Ductile Iron, Wafer Type, 285 PSI, WD-5022
    The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The unique molded-in EPDM seat liner with stainless steel disc is recommended for the higher pressure requirements of systems today and chemical applications the liner compatibility will permit. With the internal stem/disc geometric drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
    1 - 21 of 21 | Results Per Page | View | Unit of Measure
    1
    Request Information Compare Items Add to CAD Cart

    Material Number

    UPC Code

    Valve Size

    Valve Operator

    Description

    Turns/Operation

    N/A 039923288158 N/A 10 N/A Gear Operator N/A WD50225 10 WAFER BFV GEAR OP DI 285 PSI N/A Quarter-Turn
    N/A 039923288073 N/A 10 N/A Bare Stem / Bare Shaft N/A WD50220 10 WAFER BFV BARE STEM DI 285 N/A Quarter-Turn
    N/A 039923288165 N/A 12 N/A Gear Operator N/A WD50225 12 WAFER BFV GEAR OP DI 285 PSI N/A Quarter-Turn
    N/A 039923288080 N/A 12 N/A Bare Stem / Bare Shaft N/A WD50220 12 WAFER BFV BARE STEM DI 285 N/A Quarter-Turn
    N/A 039923287861 N/A 2 N/A Lever-Lock Handle N/A WD50223 2 WAFER BFV L/LK HNDL DI 285 N/A Quarter-Turn
    N/A 039923287830 N/A 2 N/A Bare Stem / Bare Shaft N/A WD50220 2 WAFER BFV BARE STEM DI 285 N/A Quarter-Turn
    N/A 039923287878 N/A 2 1/2 N/A Lever-Lock Handle N/A WD50223 21/2 WAFER BFV L/LK HNDL DI 285 N/A Quarter-Turn
    N/A 039923287847 N/A 2 1/2 N/A Bare Stem / Bare Shaft N/A WD50220 21/2 WAFER BFV BARE STM DI 285 N/A Quarter-Turn
    N/A 039923287885 N/A 3 N/A Lever-Lock Handle N/A WD50223 3 WAFER BFV L/LK HNDL DI 285 PSI N/A Quarter-Turn
    N/A 039923287854 N/A 3 N/A Bare Stem / Bare Shaft N/A WD50220 3 WAFER BFV BARE ST DI 285PSI N/A Quarter-Turn
    N/A 039923288097 N/A 4 N/A Lever-Lock Handle N/A WD50223 4 WAFER BFV L/LK HNDL DI 285 PSI N/A Quarter-Turn
    N/A 039923288035 N/A 4 N/A Bare Stem / Bare Shaft N/A WD50220 4 WAFER BFV BARE STEM DI 285 N/A Quarter-Turn
    N/A 039923288103 N/A 5 N/A Lever-Lock Handle N/A WD50223 5 WAFER BFV L/LK HNDL DI 285 PSI N/A Quarter-Turn
    N/A 039923322678 N/A 5 N/A Gear Operator N/A WD50225 5 WAFER BFV GEAR OP DI 285 PSI N/A Quarter-Turn
    N/A 039923288042 N/A 5 N/A Bare Stem / Bare Shaft N/A WD50220 5 WAFER BFV BARE STEM DI 285 N/A Quarter-Turn
    N/A 039923288110 N/A 6 N/A Lever-Lock Handle N/A WD50223 6 WAFER BFV L/LK HNDL DI 285 PSI N/A Quarter-Turn
    N/A 039923288134 N/A 6 N/A Gear Operator N/A WD50225 6 WAFER BFV GEAR OP DI 285 PSI N/A Quarter-Turn
    N/A 039923288059 N/A 6 N/A Bare Stem / Bare Shaft N/A WD50220 6 WAFER BFV BARE STEM DI 285 N/A Quarter-Turn
    N/A 039923288127 N/A 8 N/A Lever-Lock Handle N/A WD50223 8 WAFER BFV L/LK HNDL DI 285 PSI N/A Quarter-Turn
    N/A 039923288141 N/A 8 N/A Gear Operator N/A WD50225 8 WAFER BFV GEAR OP DI 285 PSI N/A Quarter-Turn
    N/A 039923288066 N/A 8 N/A Bare Stem / Bare Shaft N/A WD50220 8 WAFER BFV BARE STEM DI 285 N/A Quarter-Turn
