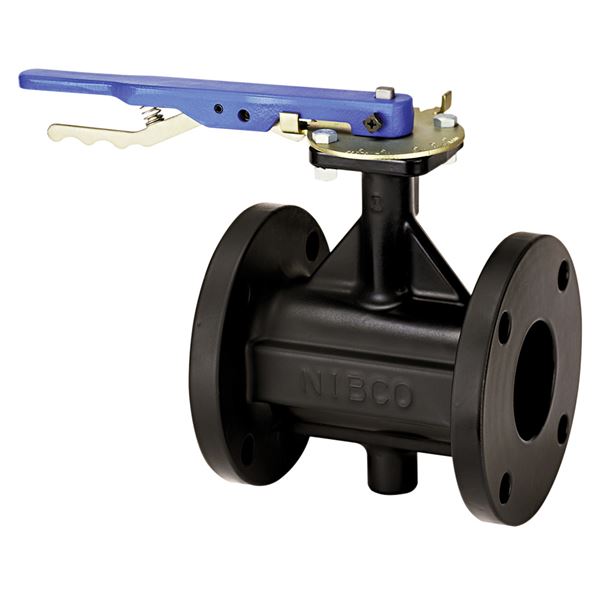

    • Butterfly Valve - Ductile Iron, Flanged, 285 PSI, FD-5775
    • Butterfly Valve - Ductile Iron, Flanged, 285 PSI, FD-5775
    The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve features an EPDM encapsulated ductile iron disc. The internal stem/disc splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
    1 - 25 of 55 | Results Per Page | View | Unit of Measure
    1 2 3
    Request Information Compare Items Search by Specification Add to CAD Cart

    Material Number

    UPC Code

    Connection Type

    Valve Size

    Description

    Turns/Operation

    N/A 039923779120 N/A F -- Flanged N/A 50 N/A FD57650PN10 50MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779137 N/A F -- Flanged N/A 65 N/A FD57650PN10 65MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779144 N/A F -- Flanged N/A 80 N/A FD57650PN10 80MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779151 N/A F -- Flanged N/A 100 N/A FD57650PN10 100MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779168 N/A F -- Flanged N/A 125 N/A FD57650PN10 125MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779175 N/A F -- Flanged N/A 150 N/A FD57650PN10 150MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779182 N/A F -- Flanged N/A 200 N/A FD57650PN10 200MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779199 N/A F -- Flanged N/A 250 N/A FD57650PN10 250MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779205 N/A F -- Flanged N/A 300 N/A FD57650PN10 300MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779229 N/A F -- Flanged N/A 200 N/A FD57650PN16 200MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779236 N/A F -- Flanged N/A 250 N/A FD57650PN16 250MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn
    N/A 039923779243 N/A F -- Flanged N/A 300 N/A FD57650PN16 300MM FBFV (B. STM/RSD FLG) N/A Quarter-Turn

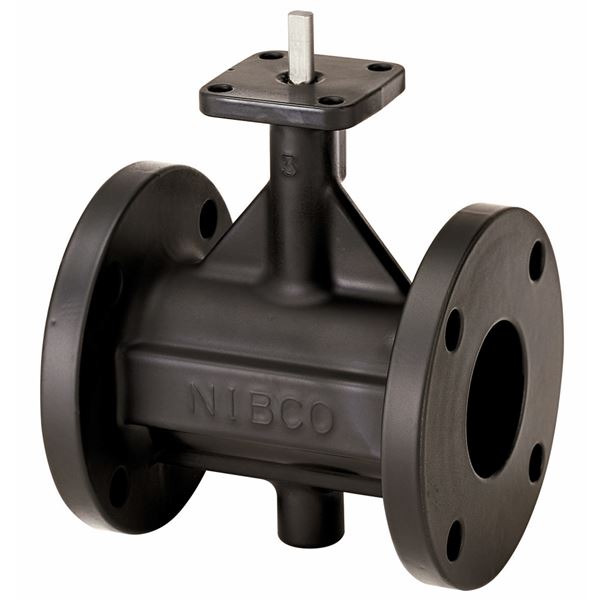

    N/A 039923779021 N/A F -- Flanged N/A 2 N/A FD57650 2 FBFV (BARE STEM/RAISED FLG) N/A Quarter-Turn
    N/A 039923779038 N/A F -- Flanged N/A 2 1/2 N/A FD57650 21/2 FBFV (BARE STEM/RAISED FLG) N/A Quarter-Turn
    N/A 039923779045 N/A F -- Flanged N/A 3 N/A FD57650 3 FBFV (BARE STEM/RAISED FLG) N/A Quarter-Turn
    N/A 039923779052 N/A F -- Flanged N/A 4 N/A FD57650 4 FBFV (BARE STEM/RAISED FLG) N/A Quarter-Turn
    N/A 039923779069 N/A F -- Flanged N/A 5 N/A FD57650 5 FBFV (BARE STEM/RAISED FLG) N/A Quarter-Turn
    N/A 039923779076 N/A F -- Flanged N/A 6 N/A FD57650 6 FBFV (BARE STEM/RAISED FLG) N/A Quarter-Turn
    N/A 039923779083 N/A F -- Flanged N/A 8 N/A FD57650 8 FBFV (BARE STEM/RAISED FLG) N/A Quarter-Turn
    N/A 039923779090 N/A F -- Flanged N/A 10 N/A FD57650 10 FBFV (BARE STEM/RAISED FLG) N/A Quarter-Turn
    N/A 039923779502 N/A F -- Flanged N/A 50 N/A FD57655PN10 50MM FBFV (GEAR OP/RSD FLG) N/A Quarter-Turn
    N/A 039923779519 N/A F -- Flanged N/A 65 N/A FD57655PN10 65MM FBFV (GEAR OP/RSD FLG) N/A Quarter-Turn
    N/A 039923779526 N/A F -- Flanged N/A 80 N/A FD57655PN10 80MM FBFV (GEAR OP/RSD FLG) N/A Quarter-Turn
    N/A 039923779533 N/A F -- Flanged N/A 100 N/A FD57655PN10 100MM FBFV (GEAR OP/RSD FLG) N/A Quarter-Turn
    N/A 039923779540 N/A F -- Flanged N/A 125 N/A FD57655PN10 125MM FBFV (GEAR OP/RSD FLG) N/A Quarter-Turn
