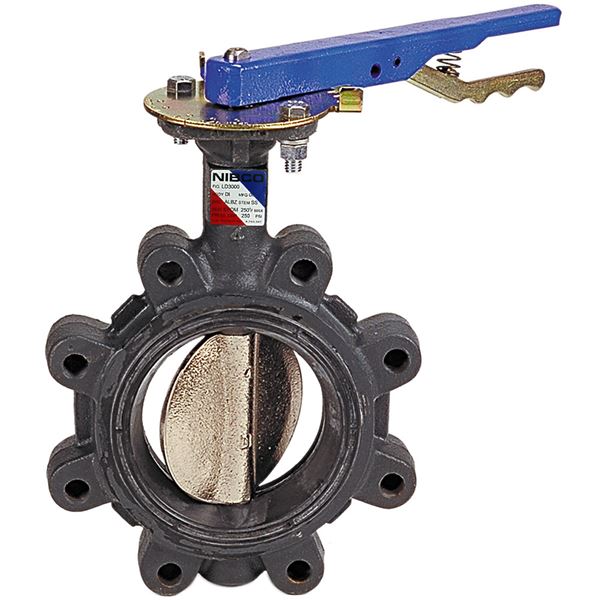

    • Butterfly Valve - Ductile Iron, Lug Type, 250 PSI, LD-3010
    The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The unique molded-in EPDM seat liner with ductile iron disc is recommended for most water applications. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
    1 - 25 of 26 | Results Per Page | View | Unit of Measure
    1 2
    Request Information Compare Items Search by Specification Add to CAD Cart

    Material Number

    UPC Code

    Connection Type

    Valve Size

    Description

    Turns/Operation

    N/A 039923722355 N/A L - Lug N/A 2 N/A LD30100 2 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923722362 N/A L - Lug N/A 2 1/2 N/A LD30100 2 1/2 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923722379 N/A L - Lug N/A 3 N/A LD30100 3 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923722386 N/A L - Lug N/A 4 N/A LD30100 4 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923722393 N/A L - Lug N/A 5 N/A LD30100 5 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923722409 N/A L - Lug N/A 6 N/A LD30100 6 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923722416 N/A L - Lug N/A 8 N/A LD30100 8 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923722423 N/A L - Lug N/A 10 N/A LD30100 10 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923722430 N/A L - Lug N/A 12 N/A LD30100 12 LUG BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923723253 N/A L - Lug N/A 2 N/A LD30105 2 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923723260 N/A L - Lug N/A 2 1/2 N/A LD30105 21/2 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923723277 N/A L - Lug N/A 3 N/A LD30105 3 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923723284 N/A L - Lug N/A 4 N/A LD30105 4 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923723291 N/A L - Lug N/A 5 N/A LD30105 5 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923723307 N/A L - Lug N/A 6 N/A LD30105 6 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923723314 N/A L - Lug N/A 8 N/A LD30105 8 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923723321 N/A L - Lug N/A 10 N/A LD30105 10 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923723338 N/A L - Lug N/A 12 N/A LD30105 12 LUG BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923722652 N/A L - Lug N/A 2 N/A LD30103 2 LUG BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923722669 N/A L - Lug N/A 2 1/2 N/A LD30103 2 1/2 LUG BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923722676 N/A L - Lug N/A 3 N/A LD30103 3 LUG BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923722683 N/A L - Lug N/A 4 N/A LD30103 4 LUG BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923722690 N/A L - Lug N/A 5 N/A LD30103 5 LUG BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923722706 N/A L - Lug N/A 6 N/A LD30103 6 LUG BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923722713 N/A L - Lug N/A 8 N/A LD30103 8 LUG BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
