    • GD-4863-8N

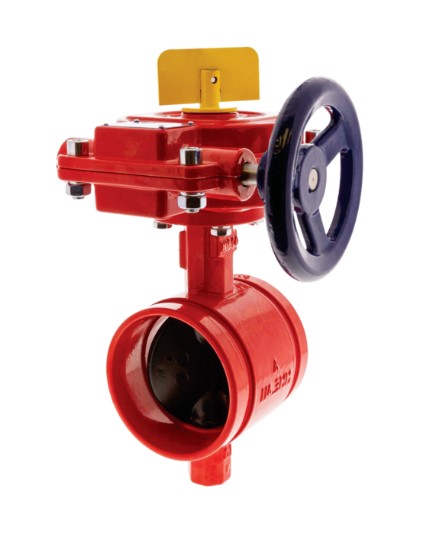

    The NIBCO® ductile iron butterfly valve is designed specifically to meet the rigorous requirements of automatic sprinkler systems. The unique EPDM molded-in seat liner with ductile iron disc provides bubble-tight shutoff at rated pressure. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and fire protection systems. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
    1 - 11 of 11 | Results Per Page | View | Unit of Measure
    1
    Request Information Compare Items Add to CAD Cart

    Material Number

    UPC Code

    Valve Size

    Connection Type

    Description

    Turns/Operation

    NLK981FF N/A 039923418722 N/A 76 N/A G - Grooved N/A GD48638N 76 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
    NLK981PP N/A 039923418739 N/A 165 N/A G - Grooved N/A GD48638N 165 300PSI ULFM VDS BFV W SW(I) N/A Quarter-Turn
    NLK981D N/A 039923418630 N/A 2 N/A G - Grooved N/A GD48638N 2 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
    NLK981E N/A 039923418647 N/A 2 1/2 N/A G - Grooved N/A GD48638N 2.5 300PSI ULFM VDS BFV W SW(I) N/A Quarter-Turn
    NLK981F N/A 039923418654 N/A 3 N/A G - Grooved N/A GD48638N 3 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
    NLK981H N/A 039923418661 N/A 4 N/A G - Grooved N/A GD48638N 4 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
    NLK981J N/A 039923418678 N/A 5 N/A G - Grooved N/A GD48638N 5 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
    NLK981K N/A 039923418685 N/A 6 N/A G - Grooved N/A GD48638N 6 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
    NLK981L N/A 039923418692 N/A 8 N/A G - Grooved N/A GD48638N 8 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
    NLK981M N/A 039923418708 N/A 10 N/A G - Grooved N/A GD48638N 10 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
    NLK981N N/A 039923418715 N/A 12 N/A G - Grooved N/A GD48638N 12 300PSI ULFM VDS BFV W SW (I) N/A Quarter-Turn
