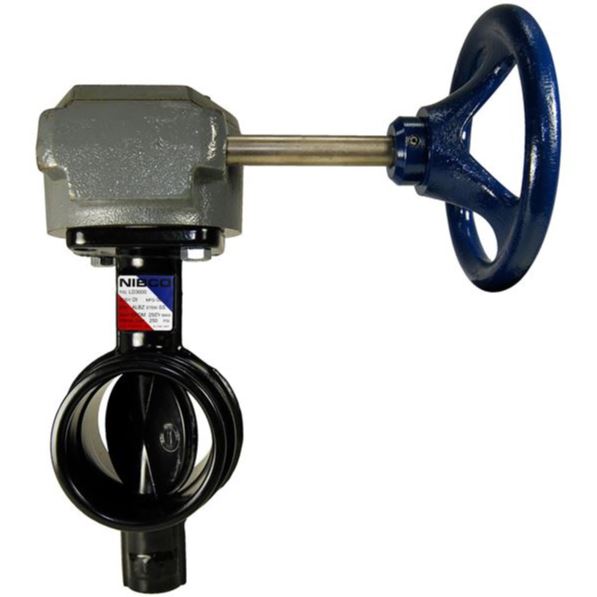

    • GD-4775 Butterfly Valve - Ductile Iron, Grooved, 300 PSI, Gear
    The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve features a Buna-N encapsulated ductile iron disc. The internal stem/disc splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
    1 - 25 of 29 | Results Per Page | View | Unit of Measure
    1 2
    Request Information Compare Items Search by Specification Add to CAD Cart

    Material Number

    UPC Code

    Connection Type

    Valve Size

    Description

    Turns/Operation

    N/A 039923767677 N/A G - Grooved N/A 6 N/A GD47755 6 GRV BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923767684 N/A G - Grooved N/A 8 N/A GD47755 8 GRV BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923767691 N/A G - Grooved N/A 10 N/A GD47755 10 GRV BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923767523 N/A Grooved N/A 2 N/A GD47753 2 GRV BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923767530 N/A Grooved N/A 2 1/2 N/A GD47753 21/2 GRV BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923767547 N/A Grooved N/A 3 N/A GD47753 3 GRV BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923767554 N/A Grooved N/A 4 N/A GD47753 4 GRV BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923767561 N/A Grooved N/A 5 N/A GD47753 5 GRV BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923767578 N/A Grooved N/A 6 N/A GD47753 6 GRV BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923767585 N/A Grooved N/A 8 N/A GD47753 8 GRV BFV L/LK HNDL DUCT IRON N/A Quarter-Turn
    N/A 039923780935 N/A G - Grooved N/A 76 N/A GD47750 76MM GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923780942 N/A G - Grooved N/A 165 N/A GD47750 165MM GRV BFV BARE STEM DI N/A Quarter-Turn
    N/A 039923767424 N/A G - Grooved N/A 2 N/A GD47750 2 GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923767431 N/A G - Grooved N/A 2 1/2 N/A GD47750 21/2 GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923767448 N/A G - Grooved N/A 3 N/A GD47750 3 GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923767455 N/A G - Grooved N/A 4 N/A GD47750 4 GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923767462 N/A G - Grooved N/A 5 N/A GD47750 5 GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923767479 N/A G - Grooved N/A 6 N/A GD47750 6 GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923767486 N/A G - Grooved N/A 8 N/A GD47750 8 GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923767493 N/A G - Grooved N/A 10 N/A GD47750 10 GRV BFV BARE STEM DUCT IRON N/A Quarter-Turn
    N/A 039923780997 N/A G - Grooved N/A 76 N/A GD47755 76MM GRV BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923767622 N/A G - Grooved N/A 2 N/A GD47755 2 GRV BFV GEAR GO DUCT IRON N/A Quarter-Turn
    N/A 039923767639 N/A G - Grooved N/A 2 1/2 N/A GD47755 21/2 GRV BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923767646 N/A G - Grooved N/A 3 N/A GD47755 3 GRV BFV GEAR OP DUCT IRON N/A Quarter-Turn
    N/A 039923767653 N/A G - Grooved N/A 4 N/A GD47755 4 GRV BFV GEAR OP DUCT IRON N/A Quarter-Turn
