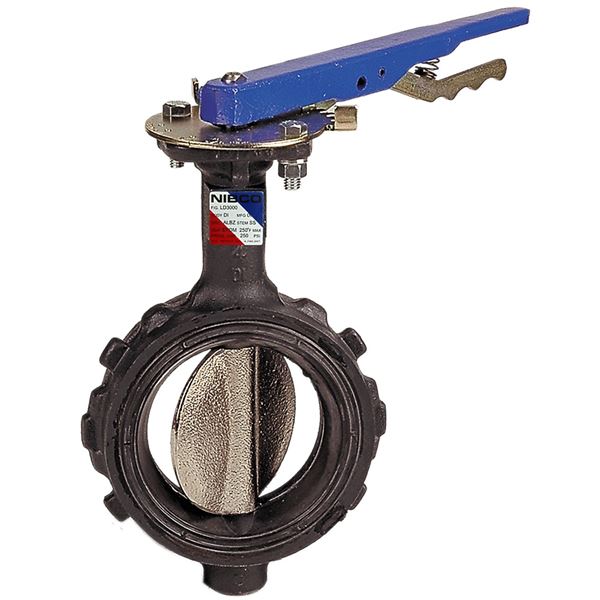

    • Butterfly Valve - Ductile Iron, Wafer Type, 100 PSI, Actuated, WD-L110
    The NIBCO® wafer type butterfly valve is provided with undercut discs for actuation purposes only. The valve is specifically designed for low pressure (100 PSI bubble-tight) on/off or modulating applications to be used in conjunction with pneumatic or electric actuators. The NIBCO® ductile iron butterfly valve features a unique molded-in Buna-N seat liner with ductile iron, electro nickel plated disc, recommended for most water applications. The internal stem/disc geometric drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information.
    1 - 11 of 11 | Results Per Page | View | Unit of Measure
    1
    Request Information Compare Items Add to CAD Cart

    Material Number

    UPC Code

    Valve Size

    Valve Operator

    Description

    Turns/Operation

    NLH24PD N/A 039923713650 N/A 2 N/A Bare Stem / Bare Shaft N/A WDL1100 2 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    NLH24PE N/A 039923713667 N/A 2 1/2 N/A Bare Stem / Bare Shaft N/A WDL1100 21/2 WAFER BFV LOW TORQ BARE STM N/A Quarter-Turn
    NLH24PF N/A 039923713674 N/A 3 N/A Bare Stem / Bare Shaft N/A WDL1100 3 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    NLH24PH N/A 039923713681 N/A 4 N/A Bare Stem / Bare Shaft N/A WDL1100 4 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    NLH24PJ N/A 039923713698 N/A 5 N/A Bare Stem / Bare Shaft N/A WDL1100 5 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    NLH24PK N/A 039923713704 N/A 6 N/A Bare Stem / Bare Shaft N/A WDL1100 6 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    NLH24PL N/A 039923713711 N/A 8 N/A Bare Stem / Bare Shaft N/A WDL1100 8 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    NLH24PM N/A 039923713728 N/A 10 N/A Bare Stem / Bare Shaft N/A WDL1100 10 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    NLH24PN N/A 039923713735 N/A 12 N/A Bare Stem / Bare Shaft N/A WDL1100 12 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    NLH24SL N/A 039923714114 N/A 8 N/A Gear Operator N/A WDL1105 8 WAFER BFV LOW TORQ GEAR OP DI N/A Quarter-Turn
    NLH24RL N/A 039923713919 N/A 8 N/A Lever-Lock Handle N/A WDL1103 8 WAFER BFV LOW TORQ L/LK HNDL N/A Quarter-Turn
