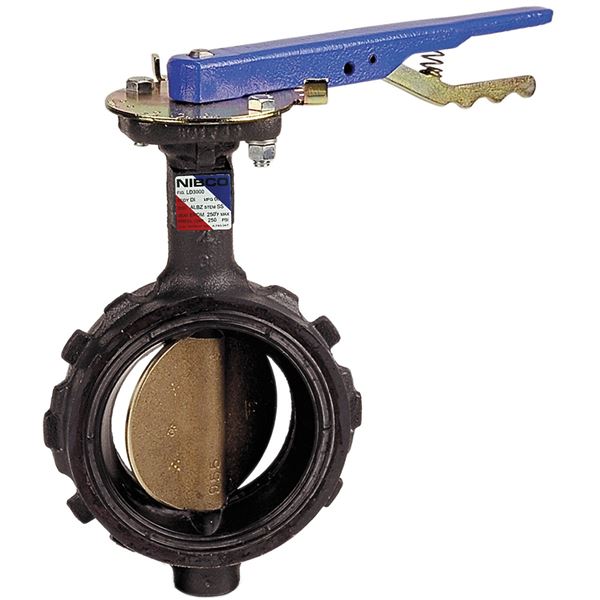

    • Butterfly Valve - Ductile Iron, Wafer Type, 250 PSI, WD-3100
    The NIBCO® ductile iron butterfly valve provides a unique molded-in EPDM seat liner with aluminum bronze disc, recommended for most water applications. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
    1 - 25 of 38 | Results Per Page | View | Unit of Measure
    1 2
    Request Information Compare Items Search by Specification Add to CAD Cart

    Material Number

    UPC Code

    Valve Size

    Valve Operator

    Description

    Turns/Operation

    N/A 039923711458 N/A 2 N/A Bare Stem / Bare Shaft N/A WDL0000 2 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    N/A 039923711465 N/A 2 1/2 N/A Bare Stem / Bare Shaft N/A WDL0000 21/2 WAFER BFV LOW TORQ BARE STM N/A Quarter-Turn
    N/A 039923711472 N/A 3 N/A Bare Stem / Bare Shaft N/A WDL0000 3 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    N/A 039923711489 N/A 4 N/A Bare Stem / Bare Shaft N/A WDL0000 4 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    N/A 039923711496 N/A 5 N/A Bare Stem / Bare Shaft N/A WDL0000 5 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    N/A 039923711502 N/A 6 N/A Bare Stem / Bare Shaft N/A WDL0000 6 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    N/A 039923711519 N/A 8 N/A Bare Stem / Bare Shaft N/A WDL0000 8 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    N/A 039923711526 N/A 10 N/A Bare Stem / Bare Shaft N/A WDL0000 10 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    N/A 039923711533 N/A 12 N/A Bare Stem / Bare Shaft N/A WDL0000 12 WAFER BFV LOW TORQ BARE STEM N/A Quarter-Turn
    N/A 039923711656 N/A 2 N/A Lever-Lock Handle N/A WDL0003 2 WAFER BFV LOW TORQ W/LV LK HDL N/A Quarter-Turn
    N/A 039923711724 N/A 10 N/A Lever-Lock Handle N/A WDL0003 10 WAFER BFV LOW TORQ W/L LK HDL N/A Quarter-Turn
    N/A 039923270689 N/A 2 N/A Electric Actuator N/A WDL0000 2 WAFER BFV W/NE300-4 ACT N/A Quarter-Turn
    N/A 039923270696 N/A 2 1/2 N/A Electric Actuator N/A WDL0000 21/2 WAFER BFV W/NE300-4 ACT N/A Quarter-Turn
    N/A 039923270702 N/A 3 N/A Electric Actuator N/A WDL0000 3 WAFER BFV W/NE300-4 ACT N/A Quarter-Turn
    N/A 039923270719 N/A 4 N/A Electric Actuator N/A WDL0000 4 WAFER BFV W/NE300-10 ACT N/A Quarter-Turn
    N/A 039923270726 N/A 5 N/A Electric Actuator N/A WDL0000 5 WAFER BFV W/NE300-10 ACT N/A Quarter-Turn
    N/A 039923270733 N/A 6 N/A Electric Actuator N/A WDL0000 6 WAFER BFV W/NE300-15 ACT N/A Quarter-Turn
    N/A 039923270740 N/A 8 N/A Electric Actuator N/A WDL0000 8 WAFER BFV W/NE500-10 ACT N/A Quarter-Turn
    N/A 039923270757 N/A 10 N/A Electric Actuator N/A WDL0000 10 WAFER BFV W/NE500-30 ACT N/A Quarter-Turn
    N/A 039923270764 N/A 12 N/A Electric Actuator N/A WDL0000 12 WAFER BFV W/NE500-30 ACT N/A Quarter-Turn
    N/A 039923270504 N/A 2 N/A Pneumatic Actuator N/A WDL0000 2 WAFER BFV W/NDA2 ACT N/A Quarter-Turn
    N/A 039923270511 N/A 2 1/2 N/A Pneumatic Actuator N/A WDL0000 21/2 WAFER BFV W/NDA2 ACT N/A Quarter-Turn
    N/A 039923270528 N/A 3 N/A Pneumatic Actuator N/A WDL0000 3 WAFER BFV W/NDA2 ACT N/A Quarter-Turn
    N/A 039923270535 N/A 4 N/A Pneumatic Actuator N/A WDL0000 4 WAFER BFV W/NDA4 ACT N/A Quarter-Turn
    N/A 039923270542 N/A 5 N/A Pneumatic Actuator N/A WDL0000 5 WAFER BFV W/NDA4 ACT N/A Quarter-Turn
