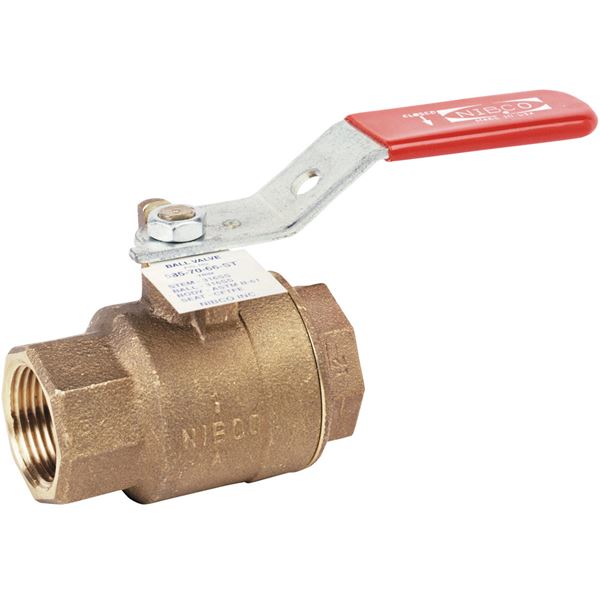

    • Two-Piece Bronze Ball Valve - Steam Service, T-585-70-66-ST
    The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve is ideal for commercial and light industrial process applications that may include medium pressure steam. The valve has threaded ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
    1 - 12 of 12 | Results Per Page | View | Unit of Measure
    1
    Request Information Compare Items Add to CAD Cart

    Material Number

    UPC Code

    Connection Type

    Valve Size

    Valve Operator

    Description

    NL95D06 N/A 039923796257 N/A T -- Female NPT Thread (FIPT) N/A 1/2 N/A SS Standard Lever Handle N/A T5857066ST 1/2 250 PSI STEAM SERV
    NL95D08 N/A 039923796264 N/A T -- Female NPT Thread (FIPT) N/A 3/4 N/A SS Standard Lever Handle N/A T5857066ST 3/4 250 PSI STEAM SERV
    NL95D0A N/A 039923796271 N/A T -- Female NPT Thread (FIPT) N/A 1 N/A SS Standard Lever Handle N/A T5857066ST 1 250 PSI STEAM SERV
    NL95D0B N/A 039923796288 N/A T -- Female NPT Thread (FIPT) N/A 1 1/4 N/A SS Standard Lever Handle N/A T5857066ST 1 1/4 250 PSI STEAM SERV
    NL95D0C N/A 039923796295 N/A T -- Female NPT Thread (FIPT) N/A 1 1/2 N/A SS Standard Lever Handle N/A T5857066ST 1 1/2 250 PSI STEAM SERV
    NL95D0D N/A 039923796301 N/A T -- Female NPT Thread (FIPT) N/A 2 N/A SS Standard Lever Handle N/A T5857066ST 2 250 PSI STEAM SERV
    NL95D36 N/A 039923681904 N/A T -- Female NPT Thread (FIPT) N/A 1/2 N/A CS Extended Lever Handle N/A T5857066STEL 1/2 250 PSI STEAM SERV
    NL95D38 N/A 039923681911 N/A T -- Female NPT Thread (FIPT) N/A 3/4 N/A CS Extended Lever Handle N/A T5857066STEL 3/4 250 PSI STEAM SERV
    NL95D3A N/A 039923681928 N/A T -- Female NPT Thread (FIPT) N/A 1 N/A CS Extended Lever Handle N/A T5857066STEL 1 250 PSI STEAM SERV
    NL95D3B N/A 039923681935 N/A T -- Female NPT Thread (FIPT) N/A 1 1/4 N/A CS Extended Lever Handle N/A T5857066STEL 1 1/4 250 PSI STEAM SERV
    NL95D3C N/A 039923681942 N/A T -- Female NPT Thread (FIPT) N/A 1 1/2 N/A CS Extended Lever Handle N/A T5857066STEL 1 1/2 250 PSI STEAM SERV
    NL95D3D N/A 039923681959 N/A T -- Female NPT Thread (FIPT) N/A 2 N/A CS Extended Lever Handle N/A T5857066STEL 2 250 PSI STEAM SERV
