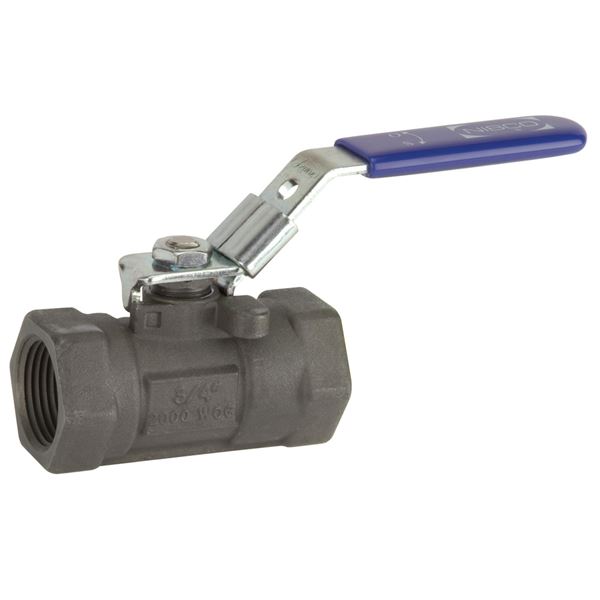

T-560-CS-R-25-LL - One-Piece Carbon Steel Ball Valve - Reduced Port, Locking Lever Handle On NIBCO

Batch CAD Cart (0) ▾

The NIBCO® carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE seat ring and stainless steel ball exhibits high chemical resistance properties and is recommended for process piping. The one-piece design eliminates leak paths and features threaded end connections for easy installation. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

1 - 13 of 13 | Results Per Page | View | Unit of Measure

Request Information Compare Items Add to CAD Cart

Material Number	UPC Code	Valve Size	Connection Type	Valve Operator	Description

NL941T4P	N/A 039923665492	N/A 1/4	N/A T -- Female NPT Thread (FIPT)	N/A CS Locking Lever Handle	N/A T560CSR25LL 1/4 THRD BALL LKG LEV CS
NL941T5P	N/A 039923665508	N/A 3/8	N/A T -- Female NPT Thread (FIPT)	N/A CS Locking Lever Handle	N/A T560CSR25LL 3/8 THRD BALL LKG LEV CS
NL941T6P	N/A 039923665515	N/A 1/2	N/A T -- Female NPT Thread (FIPT)	N/A CS Locking Lever Handle	N/A T560CSR25LL 1/2 THRD BALL LKG LEV CS
NL941T8P	N/A 039923665522	N/A 3/4	N/A T -- Female NPT Thread (FIPT)	N/A CS Locking Lever Handle	N/A T560CSR25LL 3/4 THRD BALL LKG LEV CS
NL941TAP	N/A 039923665539	N/A 1	N/A T -- Female NPT Thread (FIPT)	N/A CS Locking Lever Handle	N/A T560CSR25LL 1 THRD BALL LKG LEV CS
NL941TBP	N/A 039923665546	N/A 1 1/4	N/A T -- Female NPT Thread (FIPT)	N/A CS Locking Lever Handle	N/A T560CSR25LL 11/4 THRD BALL LKG LEV CS
NL941TCP	N/A 039923665553	N/A 1 1/2	N/A T -- Female NPT Thread (FIPT)	N/A CS Locking Lever Handle	N/A T560CSR25LL 1 1/2 THRD BALL LKG HNDL CS
NL941TDP	N/A 039923665560	N/A 2	N/A T -- Female NPT Thread (FIPT)	N/A CS Locking Lever Handle	N/A T560CSR25LL 2 THRD BALL LKG LEV CS
NL941Z4P	N/A 039923665768	N/A 1/4	N/A T -- Female NPT Thread (FIPT)	N/A CS Oval Handle	N/A T560CSR25OV 1/4 THRD BALL OVAL HNDL CS
NL941Z5P	N/A 039923665775	N/A 3/8	N/A T -- Female NPT Thread (FIPT)	N/A CS Oval Handle	N/A T560CSR25OV 3/8 THRD BALL OVAL HNDL CS
NL941Z6P	N/A 039923665782	N/A 1/2	N/A T -- Female NPT Thread (FIPT)	N/A CS Oval Handle	N/A T560CSR25OV 1/2 THRD BALL OVAL HNDL CS
NL941Z8P	N/A 039923665799	N/A 3/4	N/A T -- Female NPT Thread (FIPT)	N/A CS Oval Handle	N/A T560CSR25OV 3/4 THRD BALL OVAL HNDL CS
NL941ZAP	N/A 039923665805	N/A 1	N/A T -- Female NPT Thread (FIPT)	N/A CS Oval Handle	N/A T560CSR25OV 1 THRD BALL OVAL HNDL CS

1 - 13 of 13 | Results Per Page | View | Unit of Measure
