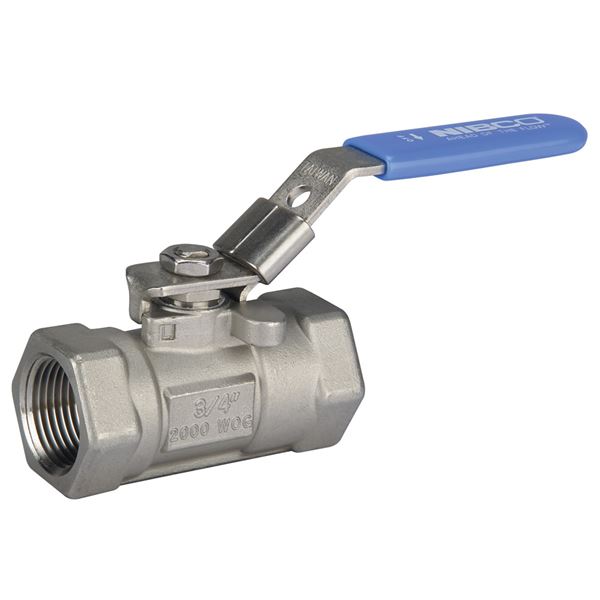

    • One-Piece Stainless Steel Ball Valve - Reduced Port, Fire Safe, T-560-S6-R-66-FS-LL
    The NIBCO® ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE seat ring, Graphoil stem packing and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. The one-piece design eliminates leak paths. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
    1 - 18 of 18 | Results Per Page | View | Unit of Measure
    1
    Request Information Compare Items Add to CAD Cart

    Material Number

    UPC Code

    Valve Size

    Connection Type

    Description

    Turns/Operation

    N/A 039923668998 N/A 1 1/4 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FS 11/4 THRD BALL LEV HNDL F/S N/A Quarter-Turn
    N/A 039923669056 N/A 1/2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSLL 1/2 THRD BALL LKG HNDL SS N/A Quarter-Turn
    N/A 039923669063 N/A 3/4 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSLL 3/4 THRD BALL LKG HNDL SS N/A Quarter-Turn
    N/A 039923669070 N/A 1 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSLL 1 THRD BALL LKG HNDL SS N/A Quarter-Turn
    N/A 039923669087 N/A 1 1/4 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSLL 1-1/4 THRD BALL LKG HNDL S N/A Quarter-Turn
    N/A 039923669094 N/A 1 1/2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSLL 1 1/2 THRD BALL LKG HNDL SS N/A Quarter-Turn
    N/A 039923669100 N/A 2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSLL 2 THRD BALL LKG HNDL SS N/A Quarter-Turn
    N/A 039923669230 N/A 1/2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOV 1/2 THRD BALL OVAL HNDL SS N/A Quarter-Turn
    N/A 039923669247 N/A 3/4 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOV 3/4 THRD BALL OVAL HNDL SS N/A Quarter-Turn
    N/A 039923669254 N/A 1 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOV 1 THRD BALL OVAL HDL F/S S N/A Quarter-Turn
    N/A 039923669261 N/A 1 1/4 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOV 11/4 THRD BALL OVAL HNDWHL N/A Quarter-Turn
    N/A 039923669278 N/A 1 1/2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOV 1 1/2 THRD BALL OVAL HNDL N/A Quarter-Turn
    N/A 039923669285 N/A 2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOV 2 THRD BALL OVAL HNDL SS N/A Quarter-Turn
    N/A 039923482075 N/A 1/2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOL 1/2 THRD BALL LKG OVAL HND N/A Quarter-Turn
    N/A 039923482082 N/A 3/4 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOL 3/4 THRD BALL LKG OVAL HND N/A Quarter-Turn
    N/A 039923482099 N/A 1 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOL 1 THRD BALL LKG OVAL HNDL N/A Quarter-Turn
    N/A 039923482105 N/A 1 1/2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOL 1 1/2 THRD BALL LKG OVAL HN N/A Quarter-Turn
    N/A 039923482112 N/A 2 N/A T -- Female NPT Thread (FIPT) N/A T560S6R66FSOL 2 THRD BALL LKG OVAL HNDL N/A Quarter-Turn
