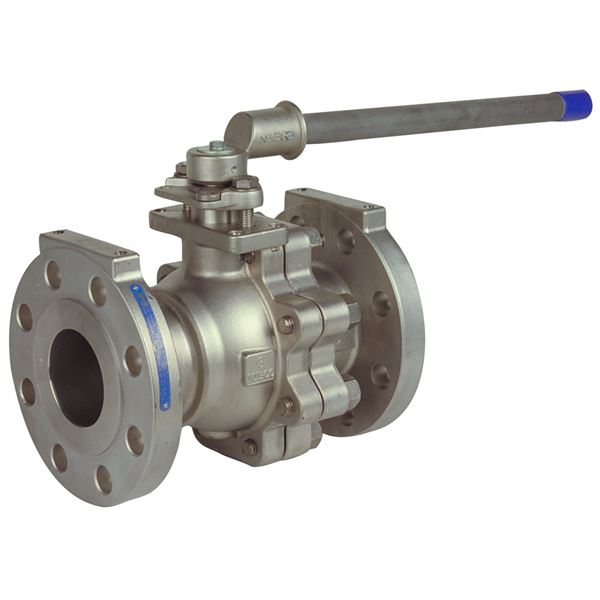

    • Split-Body Stainless Steel Ball Valve - Fire Safe, Class 300, F-535-S6-F-66-FS
    The NIBCO® stainless steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve is equipped with mounting pad for actuation purposes. The carbon filled PTFE seat ring, multiple V-ring graphite and braided graphite stem packing set and stainless steel ball/stem exhibits high chemical resistance properties. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
    1 - 14 of 14 | Results Per Page | View | Unit of Measure
    1
    Request Information Compare Items Add to CAD Cart

    Material Number

    UPC Code

    Valve Size

    Connection Type

    Valve Operator

    Description

    NG318FL N/A 039923661319 N/A 8 N/A F -- Flanged N/A Bare Stem N/A F535S6F66FS 8 FLG FULL PORT BARE STEM SS
    NG318FM N/A 039923661326 N/A 10 N/A F -- Flanged N/A Bare Stem N/A F535S6F66FS 10 FLG FULL PORT BARE STEM
    NG318GK N/A 039923661432 N/A 6 N/A F -- Flanged N/A Gear Operator N/A F535S6F66FS 6 FLG FULL PORT GEAR OP SS
    NG318GL N/A 039923661449 N/A 8 N/A F -- Flanged N/A Gear Operator N/A F535S6F66FS 8 FLG FULL PORT GEAR OP SS
    NG318GM N/A 039923661456 N/A 10 N/A F -- Flanged N/A Gear Operator N/A F535S6F66FS 10 FLG FULL PORT GEAR OP SS
    NG318F6 N/A 039923661227 N/A 1/2 N/A F -- Flanged N/A CS Standard Lever Handle N/A F535S6F66FS 1/2 FLG FULL PORT LEV HNDL
    NG318F8 N/A 039923661234 N/A 3/4 N/A F -- Flanged N/A CS Standard Lever Handle N/A F535S6F66FS 3/4 FLG FULL PORT LEV HNDL
    NG318FA N/A 039923661241 N/A 1 N/A F -- Flanged N/A CS Standard Lever Handle N/A F535S6F66FS 1 FLG FULL PORT LEV HNDL SS
    NG318FC N/A 039923661258 N/A 1 1/2 N/A F -- Flanged N/A CS Standard Lever Handle N/A F535S6F66FS 1 1/2 FLG FULL PORT LEV HNDL
    NG318FD N/A 039923661265 N/A 2 N/A F -- Flanged N/A CS Standard Lever Handle N/A F535S6F66FS 2 FULL PORT FLG LEV HNDL SS
    NG318FF N/A 039923661289 N/A 3 N/A F -- Flanged N/A CS Standard Lever Handle N/A F535S6F66FS 3 FLG FULL PORT LEV HNDL SS
    NG318FH N/A 039923661296 N/A 4 N/A F -- Flanged N/A CS Standard Lever Handle N/A F535S6F66FS 4 FLG FULL PORT LEV HNDL SS
    NG318FK N/A 039923661302 N/A 6 N/A F -- Flanged N/A CS Standard Lever Handle N/A F535S6F66FS 6 FULL PORT FLG LEV HNDL SS
    NG318R8 N/A N/A 3/4 N/A F -- Flanged N/A CS Oval Handle N/A F535S6F66FS 3/4 FLG FULL PORT OVAL HNDL
