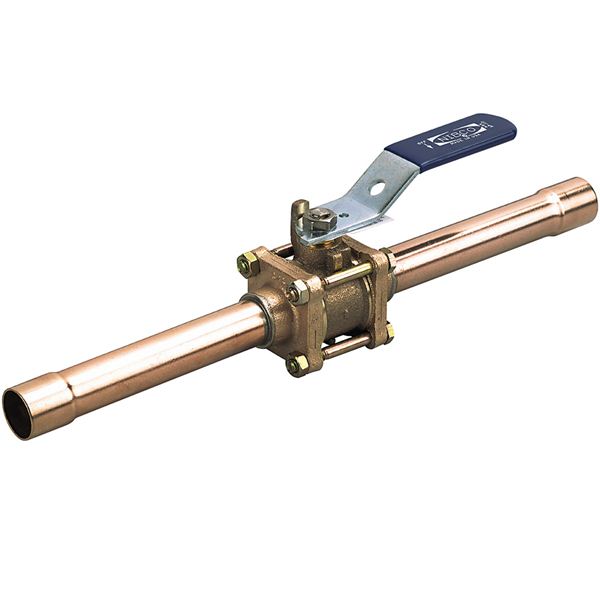

    • Three-Piece Bronze Ball Valve - Medical Gas, Copper Stub Ends, Stainless Trim, CS-595-YX-66, CS-595-YX-66-EC
    The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features solder end connections for easy installation. Options include NIB-SEAL® insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
    1 - 19 of 19 | Results Per Page | View | Unit of Measure
    1
    Request Information Compare Items Add to CAD Cart

    Material Number

    UPC Code

    Connection Type

    Valve Size

    Valve Operator

    Description

    NJ92106 N/A 039923692559 N/A CS - Copper Stub Ends (Straight) N/A 1/2 in N/A CS Standard Lever Handle N/A CS595YX 1/2 OXY CLEAN STUB END
    NJ92108 N/A 039923692566 N/A CS - Copper Stub Ends (Straight) N/A 3/4 in N/A CS Standard Lever Handle N/A CS595YX 3/4 OXY CLEAN STUB END
    NJ9210A N/A 039923692573 N/A CS - Copper Stub Ends (Straight) N/A 1 in N/A CS Standard Lever Handle N/A CS595YX 1 OXY CLEAN STUB END
    NJ9210B N/A 039923692580 N/A CS - Copper Stub Ends (Straight) N/A 1 1/4 in N/A CS Standard Lever Handle N/A CS595YX 1-1/4 OXY CLEAN STUB END
    NJ9210C N/A 039923692597 N/A CS - Copper Stub Ends (Straight) N/A 1 1/2 in N/A CS Standard Lever Handle N/A CS595YX 1-1/2 OXY CLEAN STUB END
    NJ9210D N/A 039923692603 N/A CS - Copper Stub Ends (Straight) N/A 2 in N/A CS Standard Lever Handle N/A CS595YX 2 OXY CLEAN STUB END
    NJ921A6 N/A 039923692986 N/A CS-EC - Copper Stub Ends (Expanded Cup) N/A 1/2 in N/A CS Standard Lever Handle N/A CS595YXEC 1/2 6 STUB W/EXP CUP
    NJ921A8 N/A 039923692993 N/A CS-EC - Copper Stub Ends (Expanded Cup) N/A 3/4 in N/A CS Standard Lever Handle N/A CS595YXEC 3/4 6 STUB W/EXP CUP
    NJ921AA N/A 039923693006 N/A CS-EC - Copper Stub Ends (Expanded Cup) N/A 1 in N/A CS Standard Lever Handle N/A CS595YXEC 1 6 STUB W/EXP CUP
    NJ921AB N/A 039923693013 N/A CS-EC - Copper Stub Ends (Expanded Cup) N/A 1 1/4 in N/A CS Standard Lever Handle N/A CS595YXEC 1 1/4 6 STUB W/EXP CUP
    NJ921AC N/A 039923693020 N/A CS-EC - Copper Stub Ends (Expanded Cup) N/A 1 1/2 in N/A CS Standard Lever Handle N/A CS595YXEC 1-1/2 6 STUB W/EXP CUP
    NJ921AD N/A 039923693037 N/A CS-EC - Copper Stub Ends (Expanded Cup) N/A 2 in N/A CS Standard Lever Handle N/A CS595YXEC 2 6 STUB W/EXP CUP
    NJ921AE N/A 039923234049 N/A CS-EC -- Copper Stub Ends (Expanded Cup) N/A 2 1/2 in N/A CS Standard Lever Handle N/A CS595YXEC 21/2 6 STUB W/EXP CUP OXY
    NJ92206 N/A 039923373151 N/A S -- Female Solder Cup N/A 1/2 in N/A CS Standard Lever Handle N/A CS595YXK 1/2 OXY CLEAN 12" STUB ENDS
    NJ92208 N/A 039923373168 N/A S -- Female Solder Cup N/A 3/4 in N/A CS Standard Lever Handle N/A CS595YXK 3/4 OXY CLEAN 12" STUB ENDS
    NJ9220A N/A 039923373175 N/A S -- Female Solder Cup N/A 1 in N/A CS Standard Lever Handle N/A CS595YXK 1 OXY CLEAN 12" STUB ENDS
    NJ9220B N/A 039923373182 N/A S -- Female Solder Cup N/A 1 1/4 in N/A CS Standard Lever Handle N/A CS595YXK 1 1/4 OXY CLEAN 12" STUB ENDS
    NJ9220C N/A 039923373199 N/A S -- Female Solder Cup N/A 1 1/2 in N/A CS Standard Lever Handle N/A CS595YXK 1 1/2 OXY CLEAN 12" STUB ENDS
    NJ9220D N/A 039923373205 N/A S -- Female Solder Cup N/A 2 in N/A CS Standard Lever Handle N/A CS595YXK 2 OXY CLEAN 12" STUB ENDS
