Material Number H-81416HV-RF375, 1 1/2" - Full Port Forged Brass Uni-Flange Ball Valves w/ Detachable Rotating Round Flange Multi-Function Hi-Flow Hose Drain On NIBCO

Batch CAD Cart (0) ▾

Request Information Add to CAD Cart

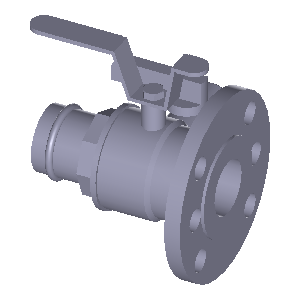

The Isolator w/ Round Flange & Multi-Function Drain
Full Port Forged Brass Uni-Flange Ball Valve
w/ Detachable Rotating Flange,
Multi-Function Hi-Flow Hose Drain,
Adjustable Packing Glands, Nuts & Bolts
*Fits Standard & High Velocity Pumps

Unit of Measure

Specifications | Performance | Materials | Dimensions

Specifications

Type	N/A Ball Valve
Valve Size	N/A 1 1/2
Connection Type	N/A Press x Rotating Flange
Valve Operator	N/A Lever Handle
Weight	N/A 4.400 lb

Performance

Maximum Operating Pressure

N/A 250 psi

Materials

Flanged Body Material	N/A Brass
End Cap Material	N/A Brass
Seat Material	N/A PTFE
Ball Material	N/A Brass HCP
Stem Material	N/A Brass
Stem Seal Material	N/A PTFE
Packing Gland Material	N/A Brass
Lever Handle Material	N/A Steel CP
O-Ring Material	N/A EPDM
Hnadle Nut Material	N/A Stainless Steel
Handle Jacket Material	N/A Vinyl
Rotaring Flange Material	N/A Ductile Iron
Rotaring Flange Ring Material	N/A Stainless Steel
Flange Bolts & Nuts Material	N/A Steel ZP
Drain Seats Material	N/A PTFE
Drain Ball Material	N/A Brass CP
Drain Stem Material	N/A Brass
Drain End Cap Material	N/A Brass
Drain Handle Material	N/A Epoxy Coated Aluminium
Drain Seal Material	N/A PTFE
Drain Packing Gland Material	N/A PTFE
Drain Screw Material	N/A Stainless Steel
Drain Cap Material	N/A Brass
Drain Strap Material	N/A PVC

Dimensions

Inside Diameter (A)	N/A 1 1/2 in
Length (B)	N/A 5.00 in
Height (C)	N/A 3 3/8 in
Handle Length (D)	N/A 3 3/8 in
Flange Thickness (E)	N/A 7/16 in
Hole Diameter (F)	N/A 5/8 in
Flange Inside Diameter (G)	N/A 1 1/2
Hole Pitch (H)	N/A 3 7/8 in
Flange Outside Diameter (I)	N/A 5 in
Hole Length (K)	N/A 5/8 in
